Turnover Device, Tool Mover, Coil Rotator Electric Drive
Leiritz Turnover Device / Tool Mover / Coil Rotator with Electric Drive enables you to safely and smoothly tilt and turn heavy tools, workpieces or coils.
Leiritz Turnover Device / Tool Mover / Coil Rotator with Electric Drive enables you to safely and smoothly tilt and turn heavy tools, workpieces or coils.
The Turnover Device / Tool Mover / Coil Rotator ProTECH with Electric Drive from the manufacturer Leiritz Maschinenbau enables you to safely and smoothly tilt and turn heavy tools, workpieces or coils. The noiseless, frequency-controlled SEW drive technology is very easy to operate and guarantees maximum operational safety and ergonomics at the workplace.
Smooth start-up and stopping when turning by frequency converter.
Maximum safety and ergonomics – Minimized shear and pinch points through closed construction.
100% Made in Germany – Directly from the manufacturer Leiritz Maschinenbau featuring 3 years warranty.
Easy operation – No commissioning by the manufacturer required.
Rugged – Self-supporting base frame and turning platforms manufactured in torsion-resistant welded construction.
Mobile – Entry openings for forks and pallet trucks in the base frame The turning table can be easily moved. No floor mounting required. Connection cable with 16 A CEE plug.
Variable use – Tilting platform with plain sheet covering without any other support plate On request, the platforms can be manufactured with C-hook opening at no extra cost.
All Tool Movers are manufactured according to customer requirements, directly at Leiritz Maschinenbau – 100% Made in Germany. For all workpiece sizes and applications we will prepare an individual offer for you, if necessary deviating from our standard variants.

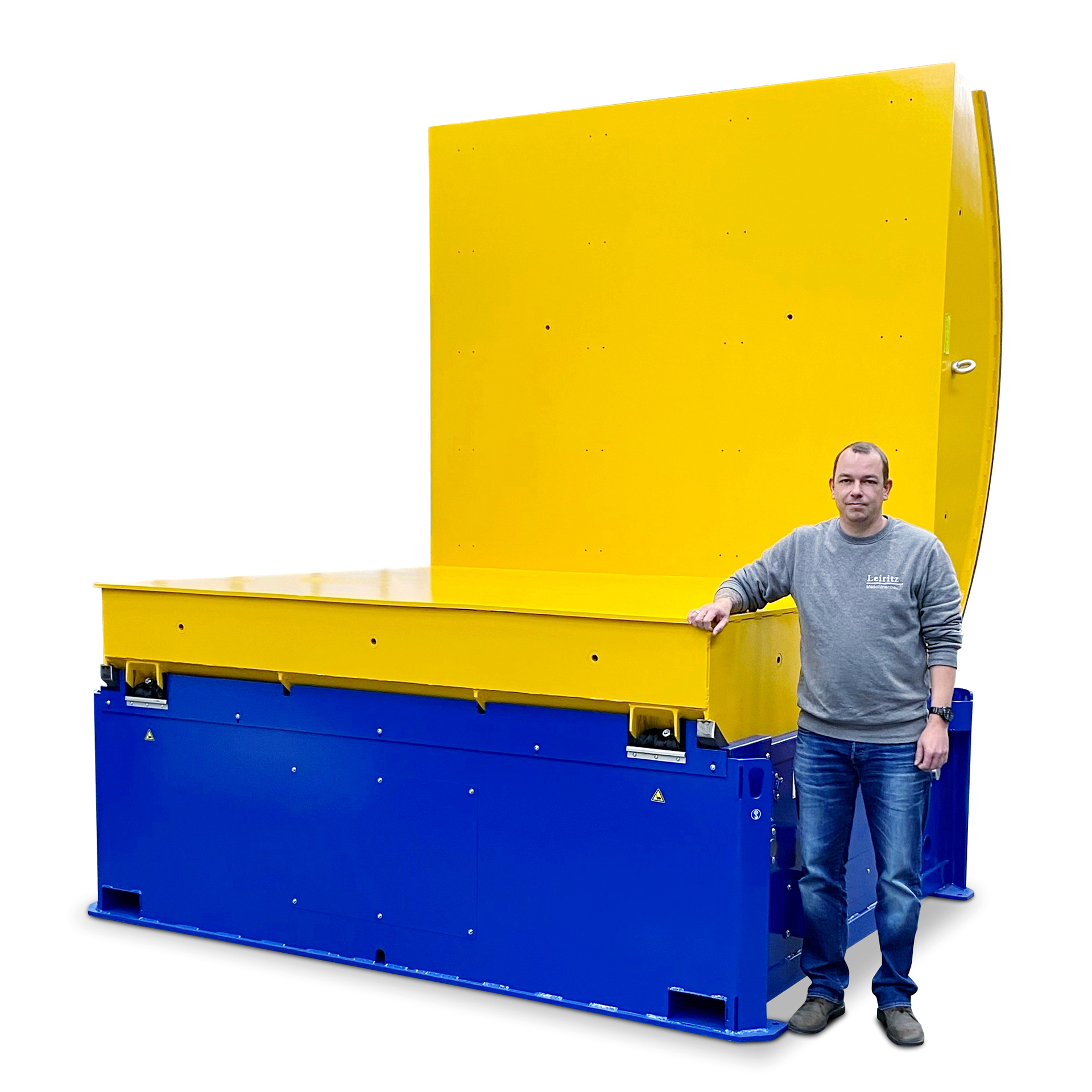

Other sizes between 1 ton and up to 80 tons load capacity are possible.

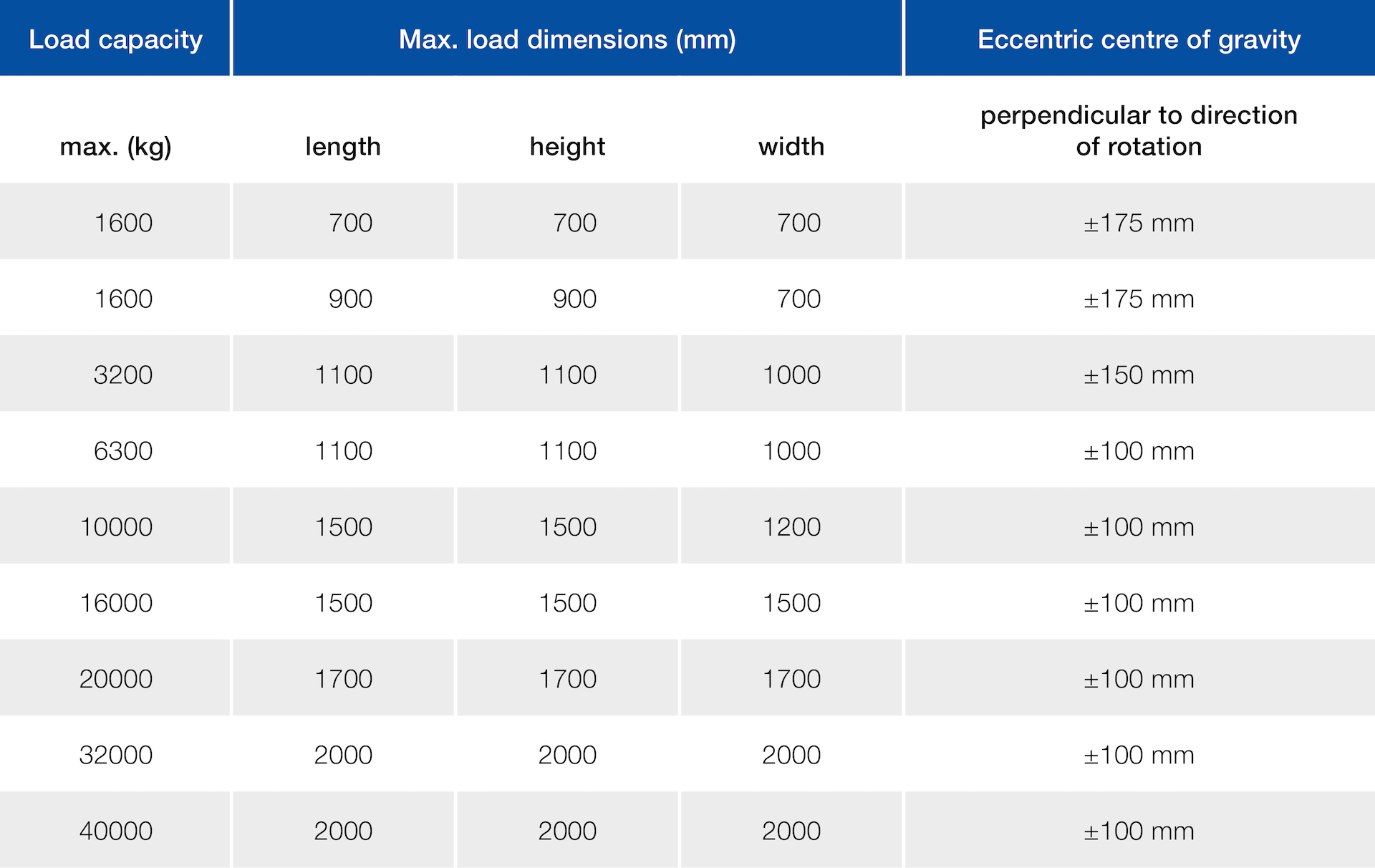

Leiritz Standard Variants
Maximum safety
Minimized shear and pinch points through closed construction.
Audible warning signal during tilting operation
.
Two flashing lights indicate the turning process.
End positions secured with limit switches .
Variable positioning of less than 90° is possible and avoids the risk of tipping-over of narrow workpieces
.
The tilting operation may be interrupted at any time.
Control
Dead man’s control via mobile hand control panel, 3 m connection cable.
Installation options/internal transport
No floor mounting required.
Connection cable with 16 A CEE plug
.
The Tool Mover can be easily moved at any time through two entry openings for forks or pallet trucks in the base frame.
Loading
Suitable for loading with indoor crane, forklift and pallet truck. Or with coil-hooks via openings in the tilting platforms.
Input Voltage connection
400 V AC, 50 Hz, 5 m connection cable with 16 A CEE plug.
Operating hours counter in the switch box included.
Tilting drive
Premium gearmotor, SEW make.
Design/Documentation
Design according to Machinery Directive 2006/42/EC and in compliance with the relevant standards
.
Documentation in German and English language
.
Operating manual.
Initial test report and test at 110% of rated load
.
CE marking and EC declaration of conformity
.
CAD overview drawing
.
Spare parts list
.
LEIRITZ – Certificate of compliance with the order 3.1.
Test book with forms for the annual tests according to German statutory accident insurance (DGUV) Regel 100-500.
Painting
Surface pre-treatment blasted acc. to SA 2 1/2 acc. to DIN EN ISO 12944-4.
2k epoxy priming
.
2k polyurethane finish paint
.
RAL colour of choice.

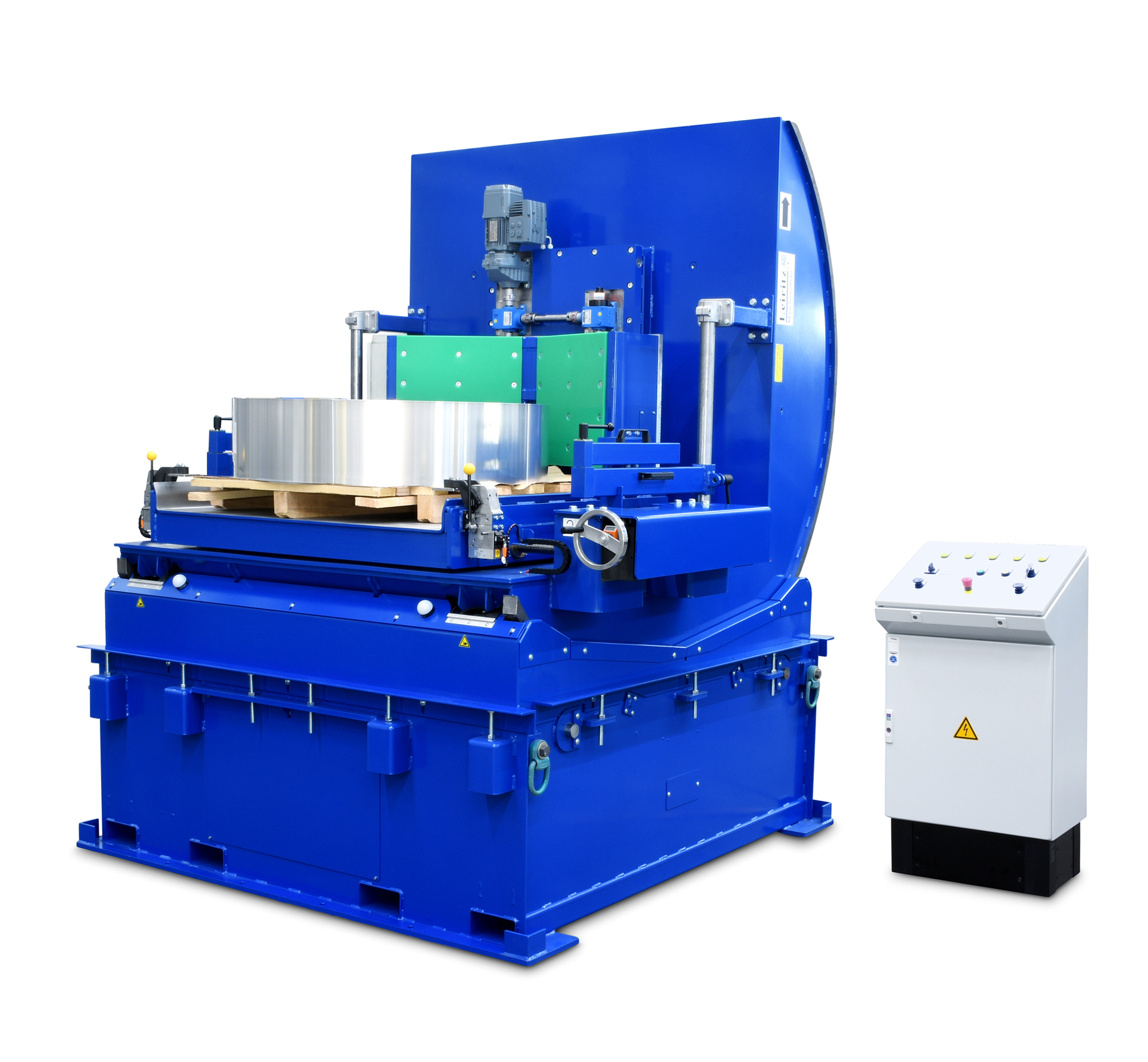

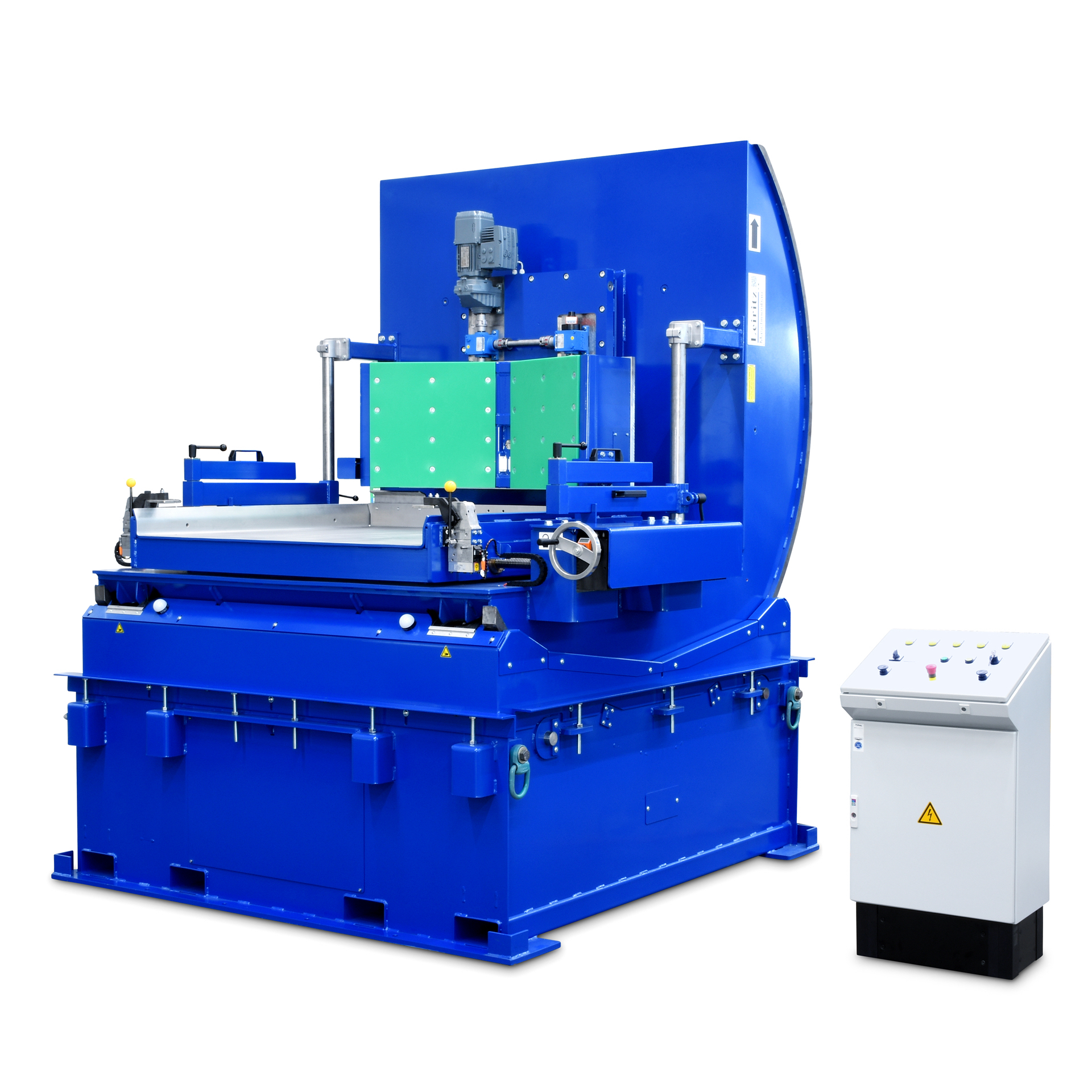

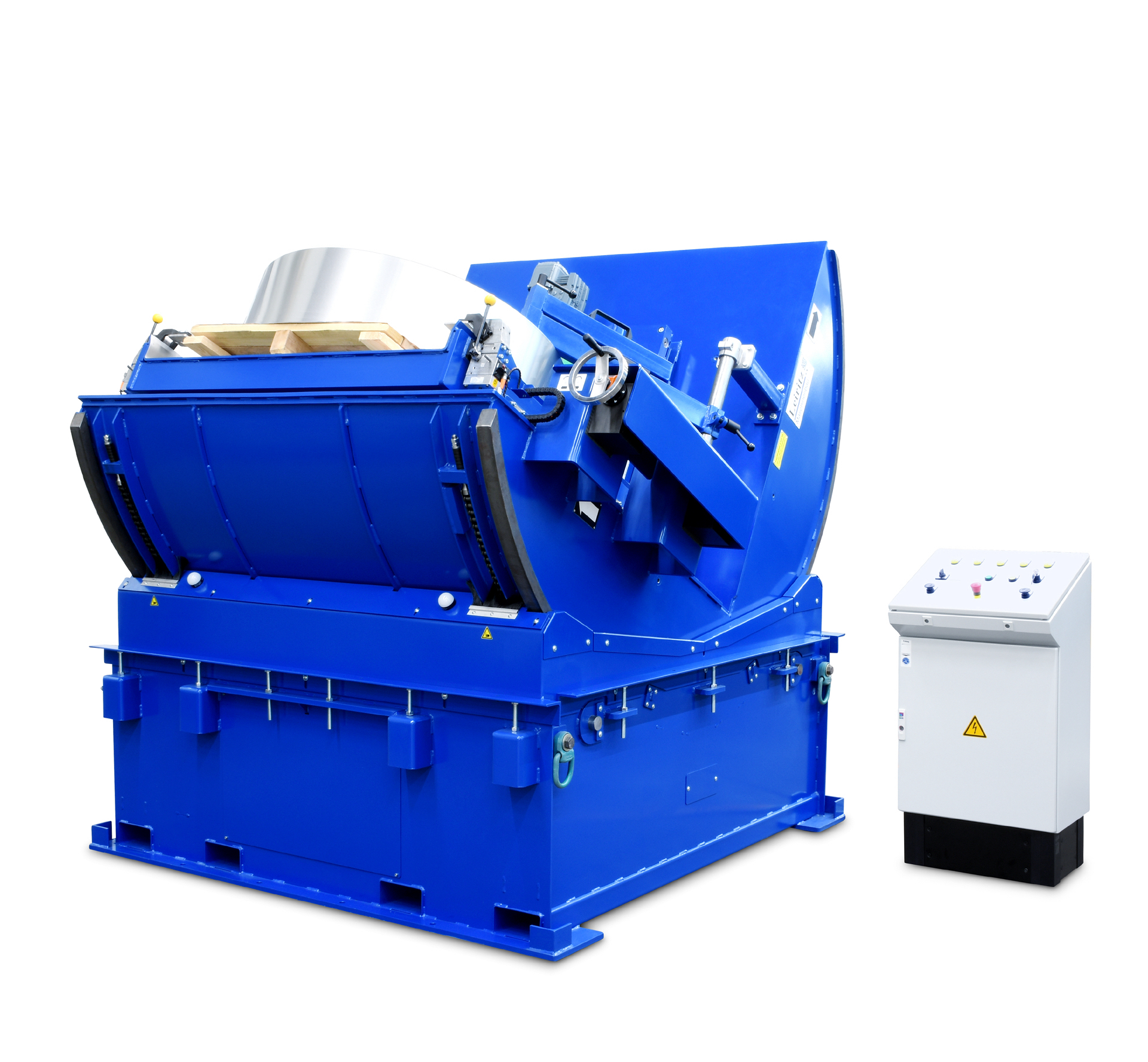

To be attached to the tilting table by means of an adapter steel plate. The support and contact surface to the coil is a protective plate, which is already mounted on the turning table and can be removed at any time. The manual adjustment compensates for different pallet heights. The clamping lever permits stepless locking.
To be attached to the tilting table by means of an adapter steel plate. A polyamide (PA) support screwed to the prism serves as the seating and contact surface to the workpiece (other protective coverings such as hardwood are possible on request). The support prism is already firmly mounted on the Toolmover and can be removed at any time by loosening the fastening screws.
![[Translate to English:] Schutzauflagen und Prallschutzplatten gehören zum Lieferumfang des Leiritz Werkzeugwender / Tool Mover made in Bayern.](/leiritz/_processed_/6/3/csm_werkzeugwender-tool-mover-schutz-auflage-leiritz_159f3b58f6.jpg "[Translate to English:] Werkzeugwender, Toolmover Schutzauflagen")
Secutex buffer pad, 10 mm. Polyurethane with perforated plate insert. Smooth, even surface. Hardness 75 Shore A. The impact protection plates are screwed onto the platform with countersunk screws.
![[Translate to English:] Der Leiritz Anfahrschutz für den Tool Mover Werkzeugwender.](/leiritz/_processed_/0/5/csm_anfahrschutz-werkzeugwender-tool-mover_fd0d04e8d8.jpg "[Translate to English:] Anfahrschutz für Werkzeugwender / Tool Mover")
Equipment protection and additional aid for easier loading and unloading with a forklift truck. The collision bumper guard is individually adapted to the respective forklift truck. The fork length is also taken into account.
![[Translate to English:] Laserscanner für den Gefahrenbereich des Werkzeugwender Tool Mover.](/leiritz/_processed_/6/9/csm_laserscanner-toolmover-werkzeugwender_22320f8e78.jpg "[Translate to English:] Laserscanner Toolmover Werkzeugwender")
The danger area is scanned by a safety laser scanner. The rotary movements of the toolmover can only be carried out when the danger area is clear.
![[Translate to English:] Die Leiritz Sicherheitsschaltleite für den Werkzeugwender / Tool Mover.](/leiritz/_processed_/b/0/csm_sicherheitsschaltleiste-werkzeugwender-tool-mover_c676628537.jpg "[Translate to English:] Sicherheitsschaltleiste für Werkzeugwender, Tool Mover")
The safety edges complement the closed design and offer maximum safety, if the working area is not completely visible to the operator or if the plant is integrated into an automatic operation.
This product video shows you the functions and advantages of the Leiritz Turnover Device Tool Mover ProTECH with electric drive.
This product video shows you three different Tool Movers ProTECH from Leiritz in daily use at the world´s leading tool manufacturer Haidlmair - Austira.

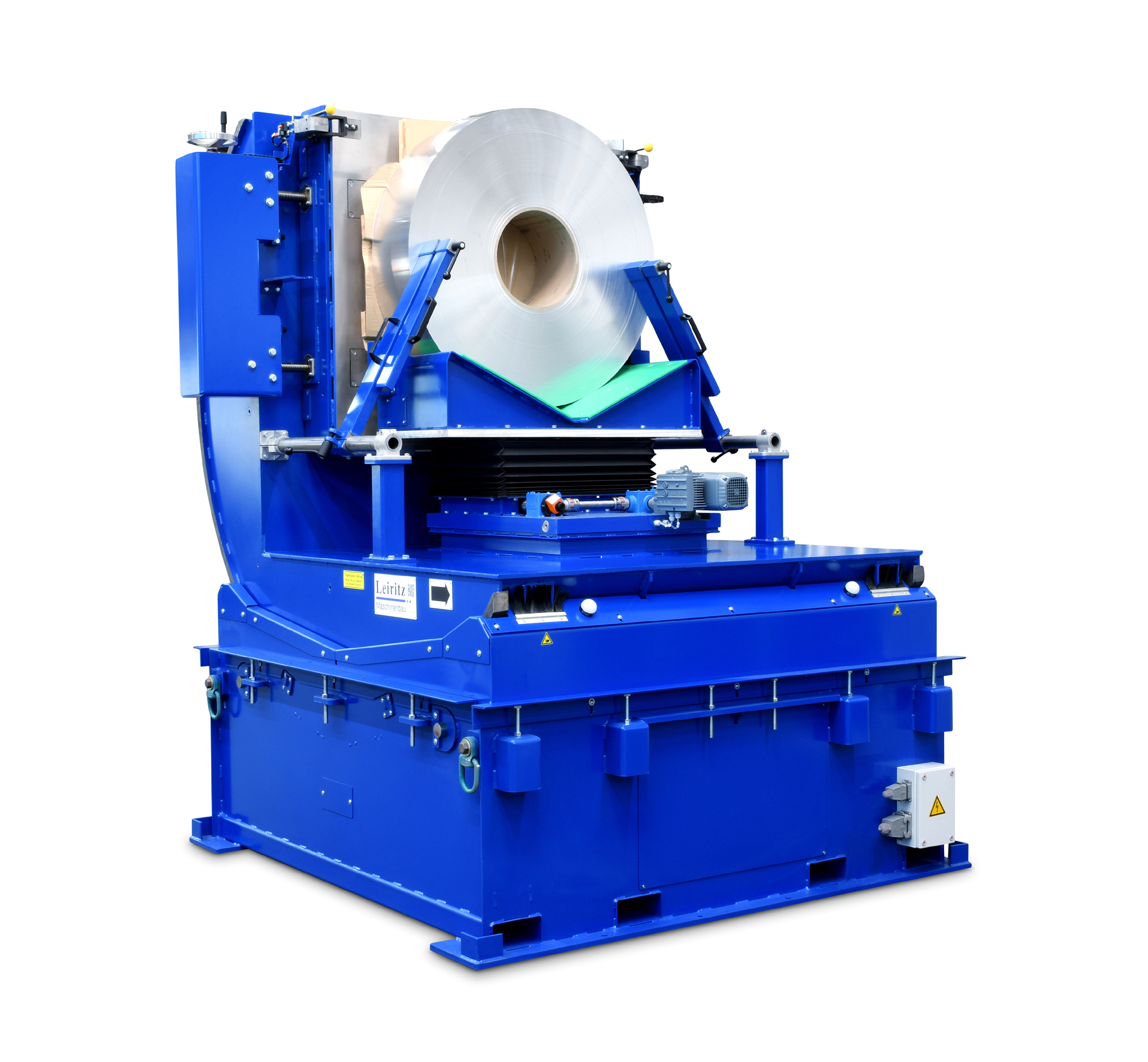

This product video shows you the various functions of the Leiritz Coil Rotator ProTECH with electric drive.
![[Translate to English:] Leiritz bringt den neuen Werkzeugwender TOOL MOVER PRO Professional Line auf den Markt.](/leiritz/_processed_/9/a/csm_tool-mover-werkzeugwender-coilwender_673add3ebe.jpg "[Translate to English:] Der neue Werkzeugwender TOOL MOVER PRO von Leiritz")
With its Tool Mover Coil Rotator ProTECH, Leiritz offers an incomparable product line in the field of safe tilting and turning of heavy loads.
ProTECH means professionalism in all components and 100% Made in Germany.
ProTECH stands for state-of-the-art, future-oriented mechanical engineering innovation.
ProTECH ensures complete production in Pappenheim, Bavaria (Germany).
ProTECH guarantees 3 years warranty without any ifs and buts.
ProTECH empowers Leiritz to offer Tool Mover and Coil Turner solutions individually tailored to your product and application.
Leiritz Tool Mover Coil Rotator ProTECH — professional, advanced and future-oriented.
At the Leiritz site in Pappenheim, a Tool Mover ProTECH with Electric Drive is waiting for your in-depth testing. You will be convinced by this PROFESSIONAL, ADVANCED and COST-EFFICIENT mechanical engineering innovation Made in Germany.
